 PIONEER MAGNETICS PRODUCT CATALOGUE Section 16

Click here for printable PDF document (section 16) - Click here for printable PDF document (entire catalogue)

  • DC TO DC POWER SUPPLIES
  • MID-RANGE VOLTAGES
  • 12V TO 60V
  • HIGH POWER SERIES

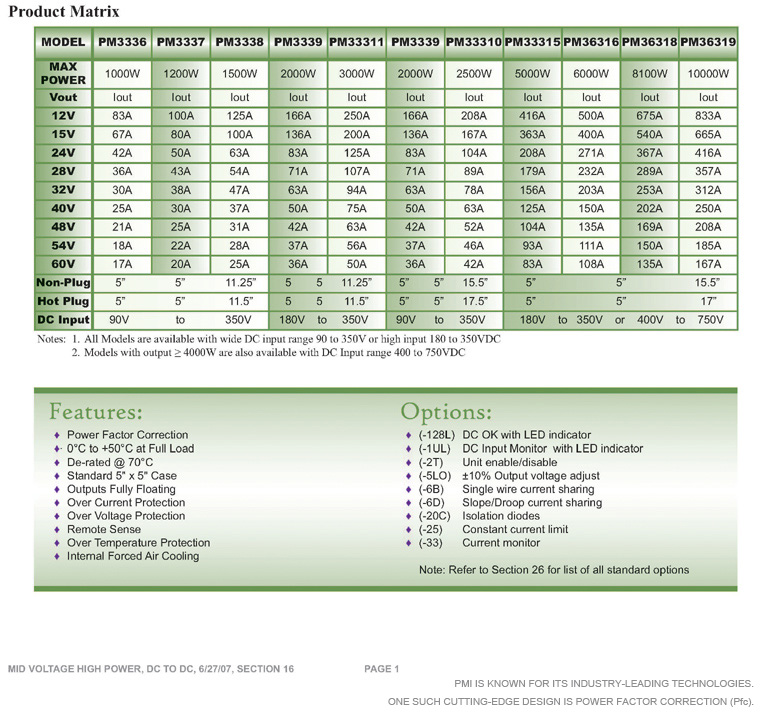

Pioneer Magnetics introduces a new breed of High Efficiency, Mid-range voltages and high power DC to DC Series proving full output power ranging from 1 kW to 10 kW. Output voltage is 12V to 60V with current ranging from 17 Amps to 800 Amps. The DC Input ranges from 90VDC to 750VDC. This series of PMI products is designed to support both standalone and parallel configurations. In addition, this model group can be configured in standard Non-Plug and Hot Plug I/O interfaces . The Premium Quality front ends are rugged, reliable, designed for high performance and come in the traditional 5” x 5” package. With power density up to 25.8 watts/in3, these units are featured with internal forced air-cooling and built-in protection from electrical over-loads.

A single module provides continuous full power over operating temperatures of 0°C to +50°C.
