 PIONEER MAGNETICS PRODUCT CATALOGUE Section 17

Click here for printable PDF document (section 17) - Click here for printable PDF document (entire catalogue)

  • DC TO DC POWER SUPPLIES
  • HIGH VOLTAGE
  • 70V TO 300V
  • HIGH POWER SERIES

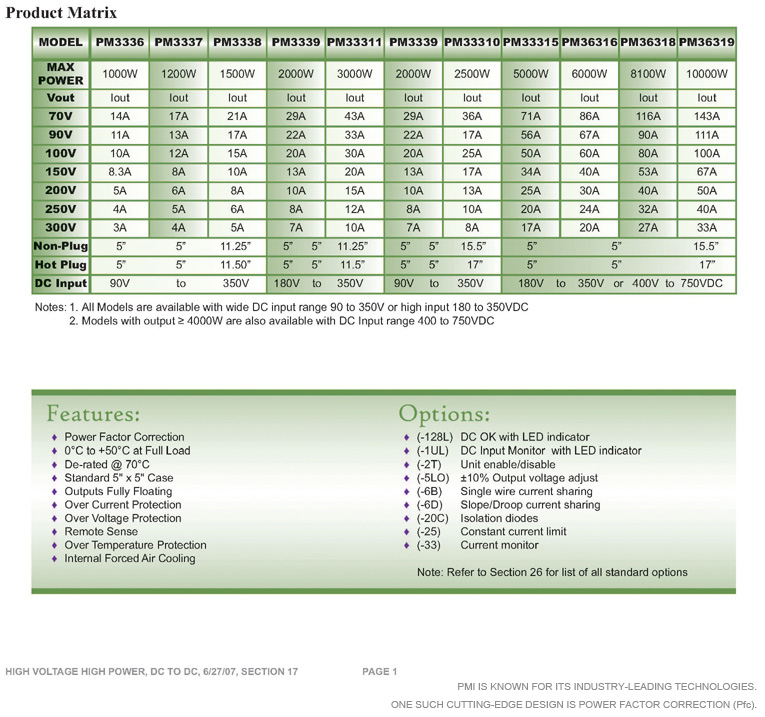

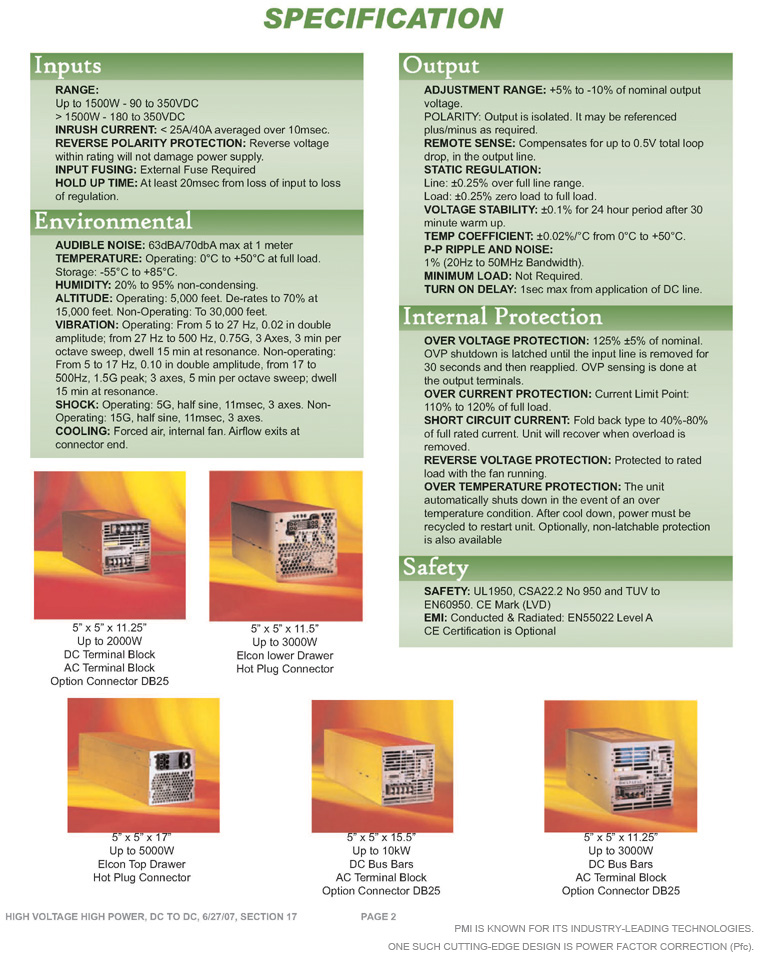

Pioneer introduces a new breed of High Efficiency, High Voltage and High Power DC to DC Series providing full output power of 1 kW to 10 kW. Output ranges from 70V to 300V with current ranging from 3 Amp to 143 Amp. DC Input ranges from 90VDC to 750VDC. Designed to support both standalone and parallel configurations, these models are configured in standard Non-Plug and Hot Plug I/O interfaces. The Premium Quality front ends are rugged, reliable, designed for high performance and come in the traditional 5" x 5" package. With power density up to 25.8 watts/in3, these units are featured with internal forced air-cooling and built-in protection from electrical over-loads.

A single module provides continuous full power over operating temperatures of 0°C to +50°C.
