 PIONEER MAGNETICS PRODUCT CATALOGUE Section 4

Click here for printable PDF document (section 4) - Click here for printable PDF document (entire catalogue)

  • PROGRAMMABLE POWER SUPPLIES
  • LOW VOLTAGE POWER SUPPLIES
  • 2 V TO 9 V
  • AC TO DC POWER SUPPLIES
  • SINGLE OUTPUT POWER SUPPLIES

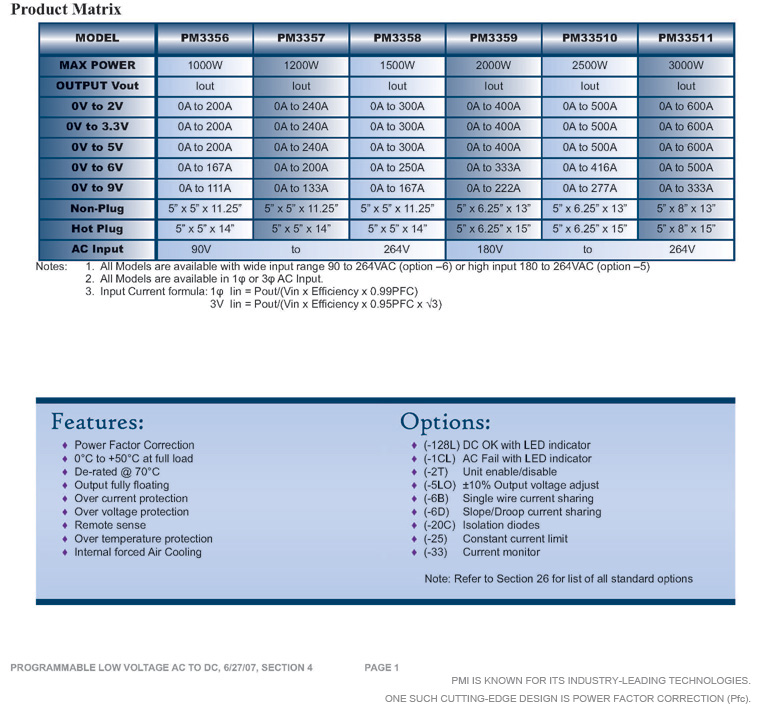

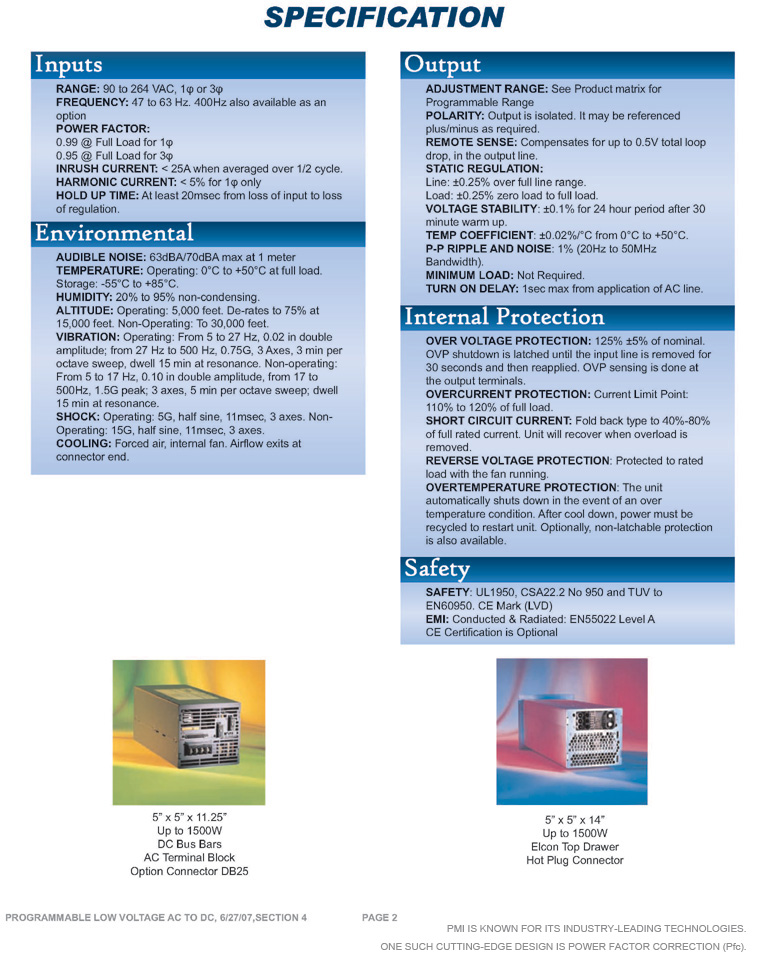

Pioneer’s programmable low voltage high current series provides a wide range of single output PFC Models. The high current models come in the traditional 5”x 5” package configured as hot plug or non-plug. Individual modules can be stacked to give up to 600A of load capacity. The premium Quality, high performance, high current switchers are rugged and highly reliable. These units are featured with 20 ms hold up time for the output, internal forced air-cooling and built-in protection from electrical overloads.

A single module provides continuous full power over operating temperatures of 0°C to +50°C, from a Single Phase or Three Phase AC input line ranging from 90 to 264VAC.
