 PIONEER MAGNETICS PRODUCT CATALOGUE Section 7

Click here for printable PDF document (section 7) - Click here for printable PDF document (entire catalogue)

  • HIGH WATTAGE POWER SUPPLIES
  • LIQUID COOLED POWER SUPPLIES
  • 32 V TO 400 V
  • AC TO DC SINGLE OUTPUT POWER SUPPLIES

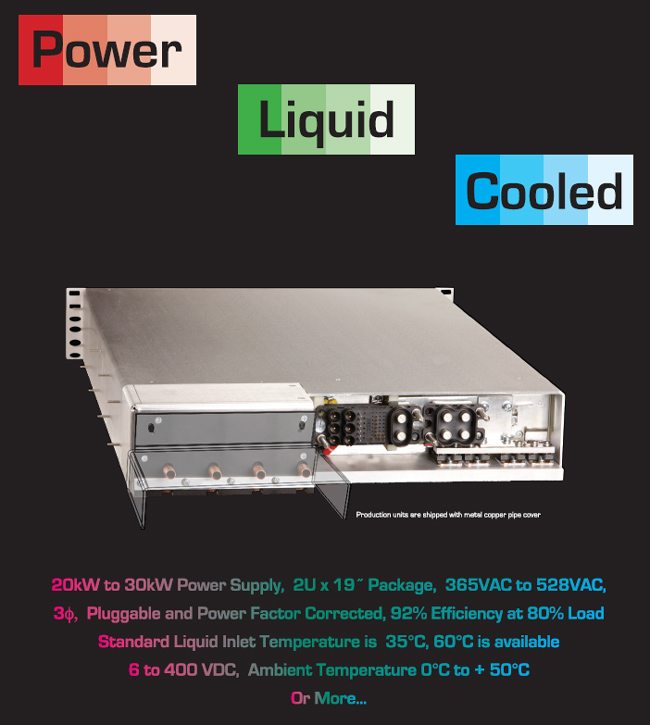

Pioneer introduces a new line of High Efficiency, High Power and Liquid Cooled Product Series providing full output power with Three PhaseAC Input ranging from 365V to 600V. Designed to support both standalone and parallel configurations, these models are configured in standard I/O interfaces with quick liquid disconnects with no spill. The Premium Quality front ends are rugged, reliable, designed for high performance and come in the traditional 2U x 19” rack mount configuration.With optimum power density, excluding the I/O interface, water connection, input fuse case and holdup time, these units are featured with liquid cooling and built-in protection from electrical over-loads and over temperature.

A single unit provides continuous full power over ambient operating temperatures of 0°C to +50°C, Three Phase AC Input line and max inlet liquid temperature of +35°C. 60ºC is available as an option.
